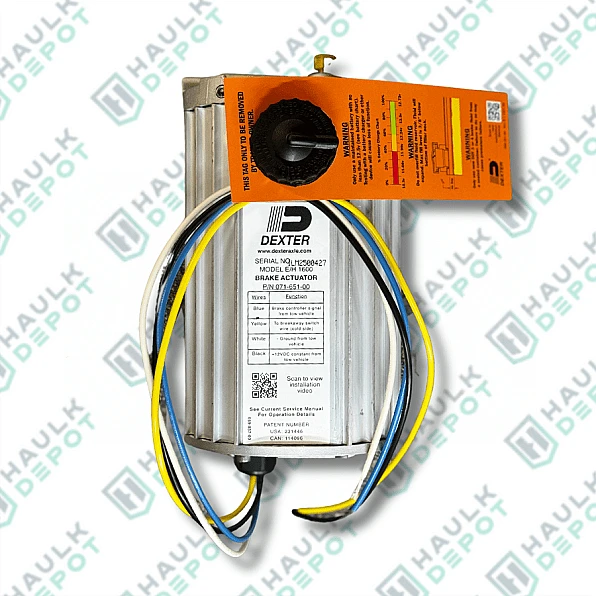

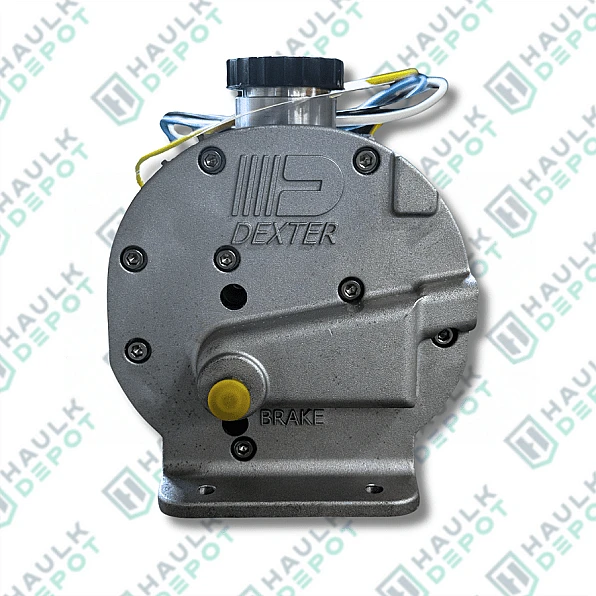

The Dexter DX Series 1,000 PSI Electric-Over-Hydraulic Brake Actuator delivers reliable braking for trailers equipped with drum brakes. Engineered for precision and safety, this actuator integrates with electric brake controllers to deliver fast, proportional braking response across single, tandem, or triple-axle setups.
Detailed Information:
| Series | DX |
|---|---|
| PSI Rating | 1000 PSI |
| Brake Compatibility | Drum Brakes Only |
| Power Source | 12V DC |
| Hydraulic Port Size | 3/16" |
| Mounting Dimensions | 11" L x 6" W x 7" H |
| Mounting Hole Spacing | 2-1/2" (same side), 9-13/16" (opposite side) |
Fitting:
Designed for use with electric brake controllers (sold separately) and 7-way trailer connectors. Suitable for trailers with single, tandem, or triple axles running drum brakes. Compatible with most standard 9Ah breakaway kits.
Features:
- Instant Brake Response: Electric-over-hydraulic system offers rapid and proportional braking, outperforming surge brakes.
- Self-Priming Pump: Reduces bleed time and prevents backflow into the reservoir.
- Protective Housing: Vented aluminum case dissipates heat and moisture, extending service life.
- Wiring Protection: Smart system automatically shuts off when current levels are unsafe.
- Manual Override Support: Allows trailer brakes to be engaged without vehicle input in emergencies.
Interchangeable Part Numbers:
- K71-650
Product Overview:
The Dexter 1000 PSI DX Series Brake Actuator delivers strong, controlled braking for trailers running drum brake systems. Built with corrosion-resistant aluminum, this unit features stainless steel fasteners, sealed wiring, and an advanced self-priming pump for ease of use. Trusted for marine, equipment, and travel trailer applications, it ensures peace of mind with every stop.
- Product type: Disc Brakes & Hydraulic Components
